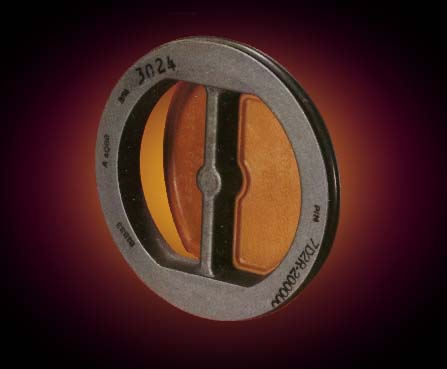

Fuel check valves can include unique single or multi-petal designs ranging in line sizes from 1" to 16". Mounting configurations utilize installation with housings or line insert. In these applications, we provide the valves with an elastomer bonded to the petal.

Typical Specification
    Weight:
       < 1 lb.
    Environmental Per Mil - STD - 810
    Cracking Pressure:
       > 1.3 inches H
2O
    Leakage:
       5 drops/min
    Temperature Range:
       -65 to +160 F

Typical Applications
    Anti-Slosh Fuel Valves
    In-Line Check Valves
    Tank Mounted Check Valves
