Single or multiple element gerotor gear sets are employed to produce pumping action for Lube and Scavenge applications where space is a critical factor. Spur Gear Pumps could also be considered.

Typical Specification
    Flow:
       7 gpm
    Pressure:
       60 psi
    Speed:
       11,000 rpm
    Weight:
       .55 lbs.

Typical Applications
    Jet Engines
    Electrical Generator Set
    Ground Turbine

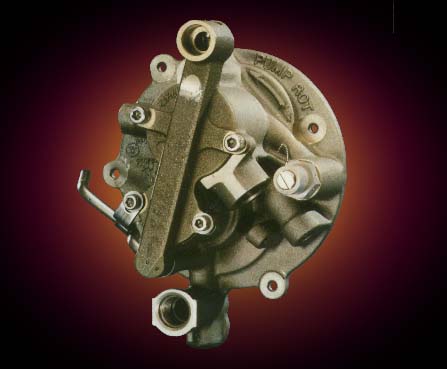

This lubrication and scavenge pump incorporates
three gerotor elements which provide lubrication oil
to a turbine engine gearbox at altitudes to 35,000 feet.
